Brand: Boch
Applicable Industry: Energy &Amp; Mining, Machinery Repair Shops, Manufacturing Plant
Performance Characteristics:

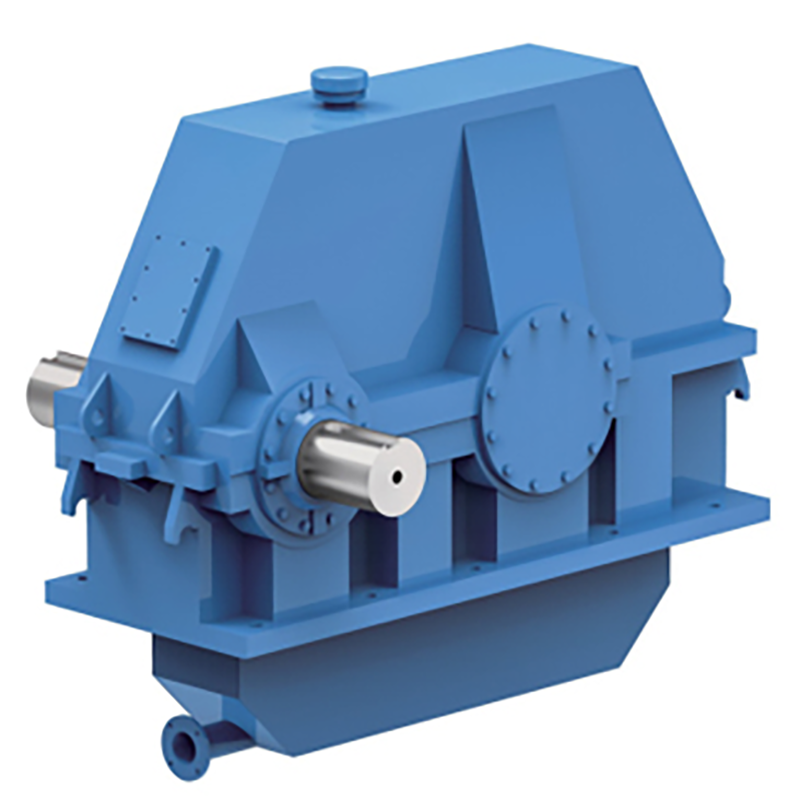

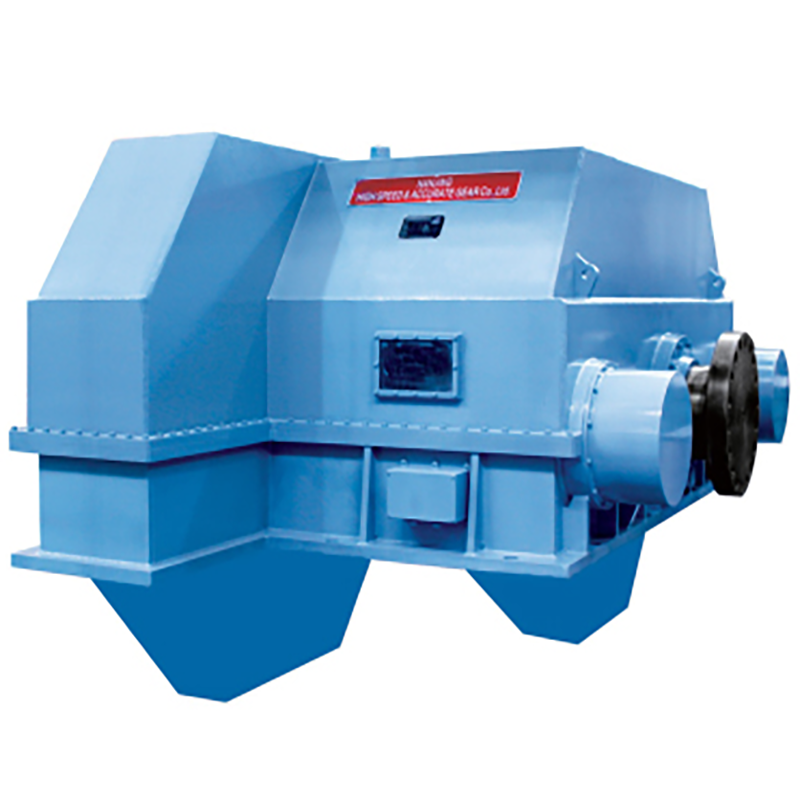

Specialized gearboxes for building materials are Power transmission devices custom-engineered for core equipment in cement, concrete, aggregate, and other building materials production lines. Their performance characteristics are specifically tailored to the industry's demanding conditions: high dust levels, heavy loads, continuous operation, and significant temperature variations. The primary feature is its exceptional sealing and dust-proof design. Employing multiple labyrinth seals and a positive pressure dust-proof system, it effectively blocks the ingress of fine, abrasive dust generated during cement grinding and raw material crushing, thereby protecting gears and bearings. Secondly, it possesses robust heavy-load starting and impact resistance capabilities, capable of withstanding the crushing of large ore blocks, the immense inertial loads during ball mill startup, and uneven material impacts during production. Simultaneously, its design incorporates thermal resistance and heat dissipation balance to withstand high-temperature radiation from surrounding rotary kilns and seasonal environmental temperature fluctuations, ensuring lubrication system stability. Furthermore, these gearboxes typically feature high modularity and maintenance convenience to accommodate short planned maintenance windows in production lines, pursuing high operational rates and extended service life under harsh conditions.
Main technical parameters:
Its primary technical parameters are designed with continuous, stable production as the core objective. Rated torque and power must meet the substantial drive demands of main equipment such as crushers, ball mills, and rotary kilns. A higher service factor is selected to provide sufficient safety margin for frequent starts/stops and material fluctuations. The gear ratio must be precisely matched to process requirements like mill rotational speed and crusher rotor speed. Thermal power is a critical parameter, particularly in indoor or enclosed equipment compartments with limited ventilation and heat dissipation. Thermal equilibrium must be maintained during continuous full-load operation. Mounting configurations and connection dimensions must securely interface with the main shafts or foundations of various mills and crushers. Protection ratings typically require IP65 or higher, with specific emphasis on dust resistance. Additionally, due to the substantial inertia of driven equipment, the maximum permissible instantaneous overload torque is a critical consideration.
Main application areas:
Main application areas:
Its applications span the entire production process of building materials, covering critical main equipment. In the raw material preparation stage, it drives large jaw crushers, impact crushers, and vertical mills for primary and secondary crushing of raw materials like limestone. In the core processes of calcination and grinding, it serves as the core component for the support roller drive of rotary kilns, the transmission systems of tube mills/ball mills, and roller presses, undertaking the most demanding and continuous operational tasks. In finished product handling and concrete production, gearboxes are applied in the main drive systems of cement mills, classifiers, packaging machines, and concrete mixing plants. Furthermore, within aggregate production lines and brick/tile manufacturing equipment, these gearboxes power diverse conveying, mixing, and forming machinery. Essentially, from raw ore intake to finished cement and concrete products leaving the plant, the reliable power for every critical process step relies on these specialized gearboxes.
Important Tips:
For specialized gearboxes in construction materials, the most critical guidance centers on dust management and long-term maintenance. Ensuring the integrity of the sealing system must be the top maintenance priority. Regularly cleaning vent caps and inspecting seal wear to prevent dust ingress are the most effective measures to guarantee longevity. Lubrication management is paramount; high-quality, heavy-duty industrial gear oil resistant to micro-pitting must be used, and oil change intervals must be strictly adhered to. In high-dust environments, regular monitoring of oil cleanliness is particularly critical. Oil analysis is recommended to predict wear conditions. During operation, closely monitor bearing temperatures and vibration levels, as abnormal temperature rises or vibrations often signal impending gear meshing issues or bearing damage. During scheduled shutdowns, even if operation appears normal, open inspection ports to examine gear surface contact and tighten all connecting bolts. Never ignore abnormal noises or vibrations in pursuit of production output. On heavy-duty, continuous production lines, minor faults left unaddressed can rapidly escalate into catastrophic failures causing full-line shutdowns and significant economic losses.
