Efficient Gearbox Technology for Industrial Environments

1. Core Functions and Industrial Significance

1.1 Technological Progression

• Modern Innovations: Post-2010 gearboxes (e.g., NGC MPT series) integrate IoT sensors for real-time monitoring of 12 parameters (oil temperature, vibration), enabling predictive maintenance with 92% fault diagnosis accuracy.

1.2 Material and Coating Advancements

• Carburized Alloys: 20CrMnTi/17CrNiMo6 steels feature HRC58-62 tooth surfaces and HRC30-45 cores for anti-fatigue durability.
• Surface Engineering: PVD-applied TiCN coatings (2-4μm) reduce friction by 50%, extending gear life by 20% in high-dust environments.

2. Key Technical Architectures

2.1 Gear Meshing Design

• Helical Gears: 12° helix angles optimize contact ratio (1.4-1.6) and reduce noise by 8-10dB compared to lower angles.

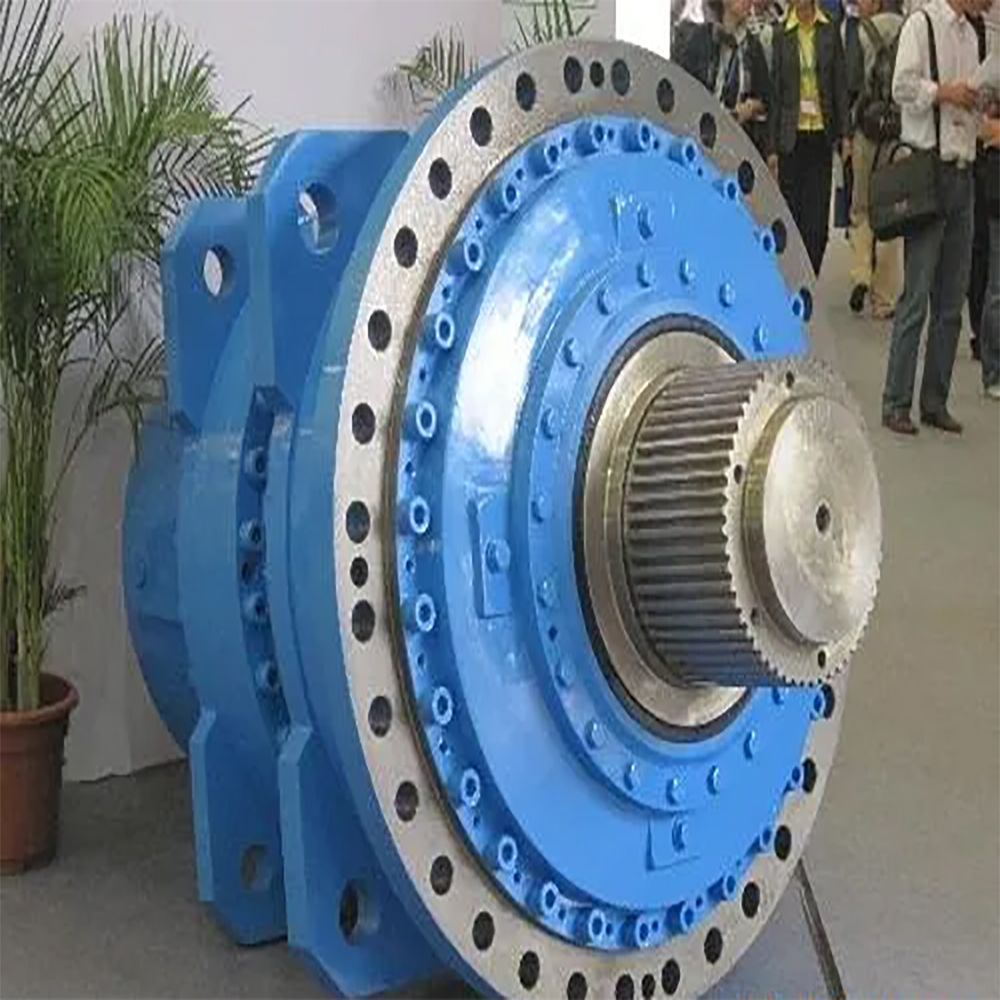

• Planetary Systems: NGW-L configurations for high-pressure roller mills use hollow sun gears to improve load sharing uniformity by 35%.

2.2 Tribological Systems

• Lubrication Solutions: PAO-based oils (ISO VG 680) with EP additives sustain 2,500MPa contact pressure in heavy-load applications.
• Sealing Technology: Quadruple barriers (PTFE seals + magnetic labyrinth) achieve <3ml/1,000h leakage and ≤5mg/m³ dust intrusion.

3. Mining Applications and Performance Data

3.1 Conveyance Equipment

• Open-Pit Belts: The MHB3000 (3,000kW, 15:1) employs dual-input power splitting to reduce gear stress by 42%, operating at 750MPa contact stress with 96.8% efficiency.
• Underground Scrapers: The JS500 (500kW, 25:1) features split housings for 2.5-hour maintenance swaps, cutting downtime by 69%.

3.2 Crushing and Grinding Systems

• High-Pressure Roller Mills (HPRMs): The MPG8000 (8,000kW, 8:1) uses planetary-helical drives for 97.2% efficiency, with water-cooling managing 450kW heat dissipation.
• Tower Mills: The MPT1200 (1,200kW, 60:1) in vertical planetary design is 30% more compact than traditional worm gear solutions.

3.3 Mobile Mining Machinery

• 800T Excavators: The ZF 8WG310 delivers 3.2×10⁶ N·m torque with ±0.5° slewing accuracy and ≤5m/s² vibration acceleration.
• Drill Rigs: The WHB200 (200kW, 100:1) anti-backlash worm gear ensures ±0.2° hole alignment via preloaded spring designs.

4. Selection Criteria and Benchmarks

4.1 Performance Matrix

4.2 Environmental Design Factors

• Load Variability: Planetary gearboxes for shock loads (2.5-3x rated), helical for steady loads (≤20% variation).
• Dust/Corrosion: IP68 sealing for ≥5,000mg/m³ dust; TiCN coatings for corrosive environments.

5. Maintenance and Lifecycle Management

5.1 Predictive Maintenance

• SmartGear™ System: Integrates vibration analysis (4.5mm/s alarm thresholds), oil debris monitoring (≥15μm ≤200/count), and thermography.
• Case Study: A gold mine reduced unscheduled downtime from 120 to 18 hours/year, achieving 32% maintenance cost savings.

5.2 Sustainable Practices

• Retrofitting: Ceramic bearings reduce friction by 40%; synthetic lubricants extend drain intervals to 18 months.
• Reconditioning: Plasma spraying restores 95% gear performance at 30% of replacement costs, with Ra ≤1.6μm surface finish.

6. Future Technological Directions

• Intelligent Integration: AI-driven remaining useful life (RUL) prediction with ±5% error via edge computing.
• Green Engineering: Biobased lubricants (≥90% degradation) and regenerative braking systems (30% energy recovery).
• Lightweight Design: Topology-optimized housings achieve 25-30% weight reduction while maintaining ≥1.2×10⁵ N/mm stiffness.
• Our main products are:Standard Industrial Gearboxes、Metallurgical Equipment Gearboxes、Gearboxes For Building Materials Equipment、Mining Equipment Gearboxes、 High-speed Gearboxes 、Construction Machinery Reducer、Rubber Machinery Gearbox、Port Crane Gearboxes、Steel Plate Warehouse.
•
