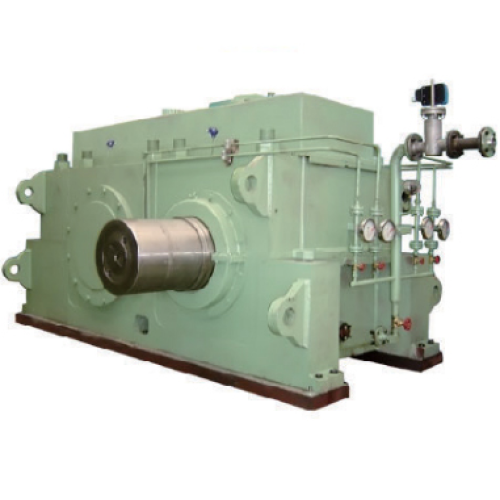

High Performance Metallurgical Gearboxes for Industrial Use

The primary technical parameters of metallurgical gearboxes are defined by their heavy-duty, high-temperature, and impact-prone operating conditions. Rated output torque and power form the foundation, with values typically substantial to meet the immense power demands of driving rollers or tilting large ladles. Service factors are selected at extremely high levels, far exceeding general industrial standards, providing ample design safety margins for withstanding extreme impact loads. Thermal power is a core consideration, as it must ensure lubricant temperatures remain within limits under the dual effects of high ambient temperatures and significant self-generated heat. The gear ratio is precisely engineered to meet process speed requirements. Installation configurations vary widely, necessitating robust connections to heavy-duty rolling mill frames, conveyor rollers, and other solid foundations. These units operate under the most demanding duty categories. Additionally, the gearbox enclosure must possess a minimum IP65 protection rating, and may require specialised coatings or cooling methods to withstand high temperatures – all parameters that must be explicitly defined during selection.

Main application areas:

Metallurgical gearboxes are integral to primary equipment throughout steel production. In ironmaking, they drive critical apparatus including blast furnace distributors, hot blast valves, and furnace opening mechanisms. During steelmaking and continuous casting, gearboxes enable precise, reliable rotation of ladle turntables, drive straighteners and segmental sections in continuous casters, and power Conveyors and separators in subsequent processing lines. Their most significant and typical application lies in rolling mills, particularly in plate rolling mill gearboxes, which deliver immense torque for rolling operations. Simultaneously, variable frequency incliners for adjusting roll leveling rely on precise, dependable gear transmission systems. Moreover, whether powering the rolls in primary or finishing mills, or driving the intricate conveyor networks criss-crossing the workshop, high-power, impact-resistant metallurgical gearboxes are indispensable. They are also extensively employed in auxiliary equipment such as plate straighteners, flying shears, and coilers, undertaking the core task of converting power into immense rolling forces. Indeed, every deformation and conveyance stage transforming red-hot billets into finished steel products relies upon the continuous operation of these robust gearboxes.

Important Tips:

For metallurgical gearboxes, the paramount consideration lies in withstanding their exceptionally harsh operating conditions. The lubrication system demands utmost attention: high-temperature, extreme-pressure heavy-duty industrial gear oils must be employed, alongside ensuring oil cleanliness and efficient circulation cooling. Any abnormal oil temperature rise warrants immediate investigation. A rigorous inspection regime must be strictly adhered to, with close monitoring of vibration and noise changes under impact loads. These represent the most direct indicators of internal gear or bearing condition. Regular cleaning of accumulated dust and oil residue from the housing surface is essential to ensure unimpeded heat dissipation. Simultaneously, all sealing points must be meticulously examined to prevent ingress of dust and moisture. During scheduled maintenance, even if no apparent gearbox faults exist, planned disassembly inspections of critical components for fatigue assessment must be conducted based on operating hours and vibration/oil analysis results. Prolonged operation beyond rated capacity to pursue output targets is strictly prohibited. Any short-term overload may inflict irreversible damage to the gearbox, triggering unplanned shutdowns and incurring greater production losses.
